Percolation

Technology used: Java, OOP, Git, Monte Carol Simulation, GUI

Skills learned:

• Gained experience in working with data structures, especially understanding and utilizing union-find data structures.

• Enhanced skills in OOP through the design and implementation of Percolation and PercolationStats classes.

• Understood how to analyze the performance of an algorithm in terms of both time and memory


Percolation. Given a composite system comprised of randomly distributed insulating and metallic materials: what fraction of the materials need to be metallic so that the composite system is an electrical conductor? Given a porous landscape with water on the surface (or oil below), under what conditions will the water be able to drain through to the bottom (or the oil to gush through to the surface)? Scientists have defined an abstract process known as percolation to model such situations.

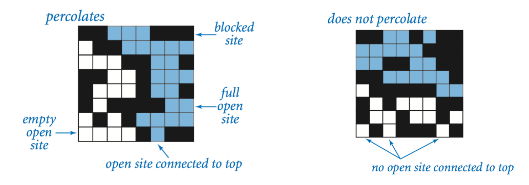

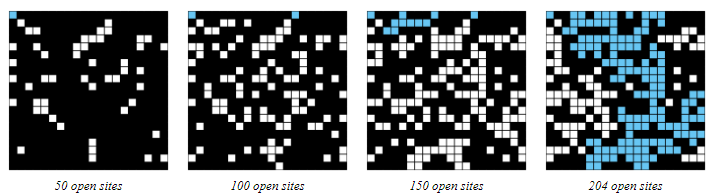

The model. We model a percolation system using an n-by-n grid of sites. Each site is either open or blocked. A full site is an open site that can be connected to an open site in the top row via a chain of neighbouring (left, right, up, down) open sites. We say the system percolates if there is a full site in the bottom row. In other words, a system percolates if we fill all open sites connected to the top row and that process fills some open sites on the bottom row. (For the insulating/metallic materials example, the open sites correspond to metallic materials, so that a system that percolates has a metallic path from top to bottom, with full sites conducting. For the porous substance example, the open sites correspond to empty space through which water might flow, so a system that percolates lets water fill open sites, flowing from top to bottom.)

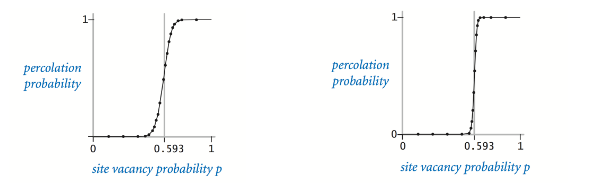

The problem. In a famous scientific problem, researchers are interested in the following question: if sites are independently set to be open with probability p (and therefore blocked with probability 1 − p), what is the probability that the system percolates? When p equals 0, the system does not percolate; when p equals 1, the system percolates. The plots below show the site vacancy probability p versus the percolation probability for 20-by-20 random grid (left) and 100-by-100 random grid (right).

By repeating the computation experiment T times and averaging the results, we obtain a more accurate estimate of the percolation threshold.

The following video visualizes the code in action

The code could be accessed here.
